Compatibility

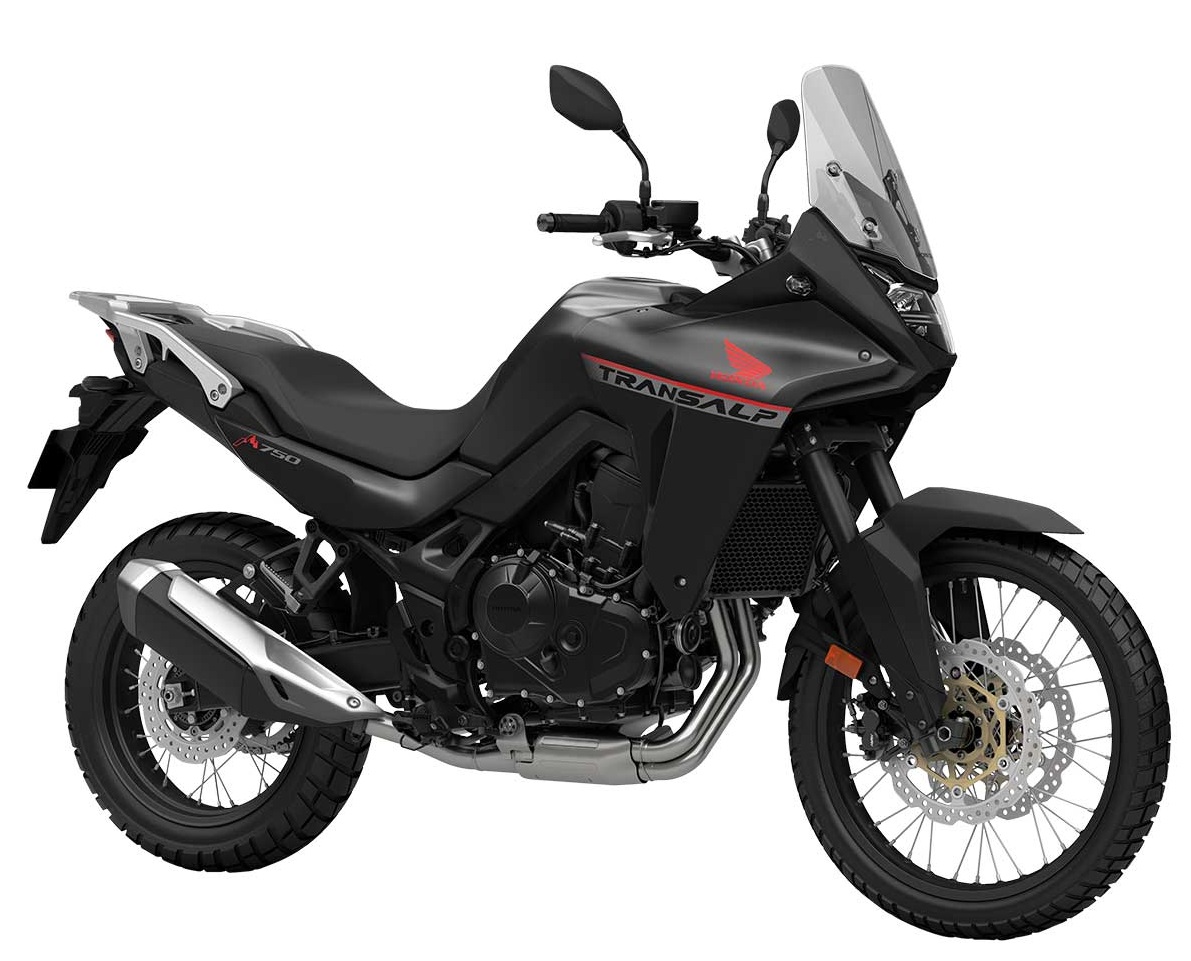

- 2025 XL750 TransAlp
See here for 2023 and 2024 year models
Triple Button Switch
A 3 button switch for controlling the cruise functions is included. Fully watertight and durable. Mounts directly to standard 22mm handlebars with a fully opening bracket. This option provides 3 buttons.
- Resume / Increase
- Cancel
- SET/ Decrease

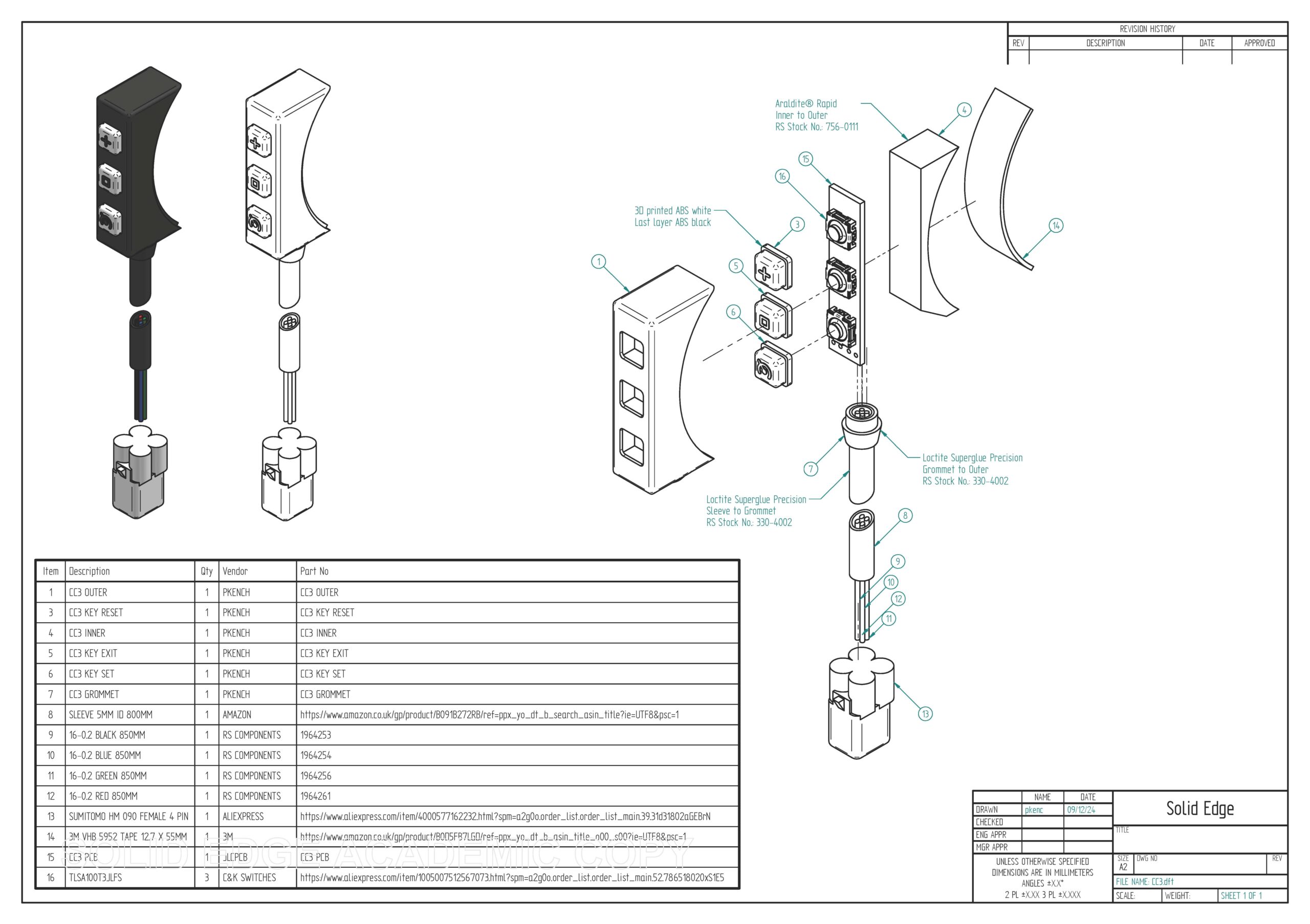

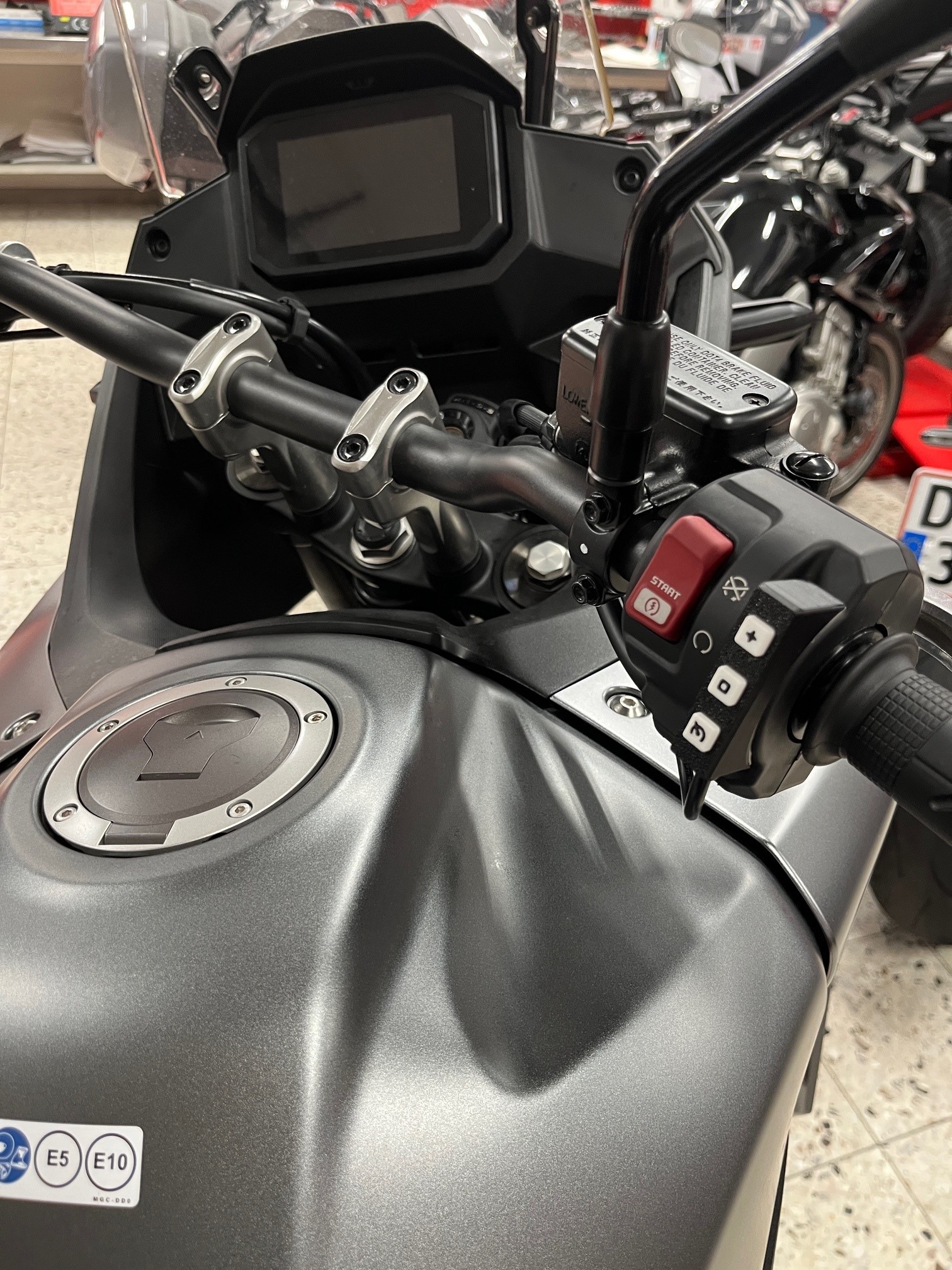

Custom Cluster Switch will not be offered for this model
Heated Grips, LED lights, and other upgrade compatibility
This kit is not compatible with motion/deceleration based brake flashers.
This kit is compatible with brake flashers triggered by the pedal/lever.
This kit is compatible with aftermarket LED kits.
This kit is compatible with stock and aftermarket heated grips.
Cruise Stop Conditions
We know it’s paramount on motorbikes to quickly kill the cruise control in as many situations as possible. Our module will disengage cruise control for any one of the following conditions:
- Engine RPM rises above 8000
- Front or Rear Brake Depressed
- Throttle grip exceed cruise control by 5%
- Any one of the required CANBUS packets are not updated within 1000 milliseconds
- Clutch is NOT Detected
Configuration
The module has a weather tight USB-C connector for changing various settings such as speed increment size, PID gain, and throttle limits.
Diagnostic Port
This kit uses the diagnostic port of your bike. If you need diagnostics you can simply unplug our module and the kit will still run in bypass mode.
Install Difficulty
To install this kit you must get access to the fuel tank area. About 1 -2 hours install time with proper tools. T-harness will override the throttle signals and diagnostic connector will collect important speed data. This kit also requires a single T-Tap connection into the brake wire.
Manual / Install
Click here for PDF Installation manual
External Videos
The Grand Shamrock Tour
